Industrial Switches

Discover how Smart Networks’ industrial switches provide reliable and robust connectivity for critical infrastructure in the utility and energy sectors. Our solutions ensure seamless operation and enhanced performance for Smart Networks.

Rackmount switches​

The Profi Line Rack Switch offers high availability and rapid recovery. It can establish industrial ring structures through both SFP and copper ports. In case of a fault, it quickly detects network node failures or line interruptions and reconfigures the network within milliseconds.

25-Port1
25-Port2
25-Port3

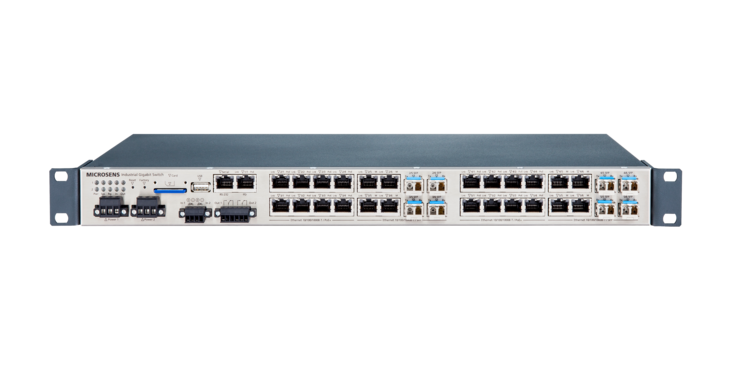

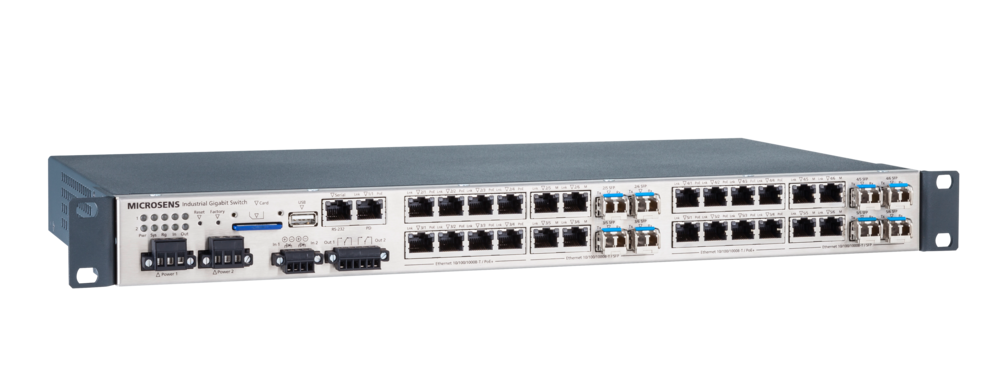

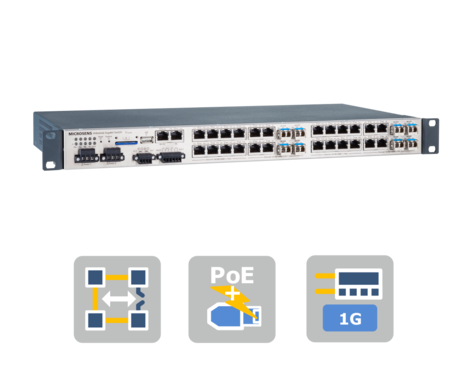

25-Port GBE Industrial Profi Line Rack Switch 19" PoE+

The 19″ version. The Profi Line Rack Switch was developed for use in harsh industrial environments and sets new standards in reliability and performance.

  • Full Gigabit Performance with Energy-Efficient Ethernet, 25 GBE-,(16 PoE+ and 8 fiber optic-Comboports)
  • PoE (802.3at) with a power budget of 240W, special version available with a total of 16x PoE+ (480W)
  • Intuitive management via Web, SSH, SNMP interface and MICROSENS NMP software
  • Compact fanless, operating temperature from -40° to +75°C
  • Redundant in power and data, fail-safe due to MICROSENS ring function with shortest recovery time
Learn More

DIN-Rail switches

The new Profi Line Modular Switches from MICROSENS offer highest performance and flexibility in the smallest space

1
2
3

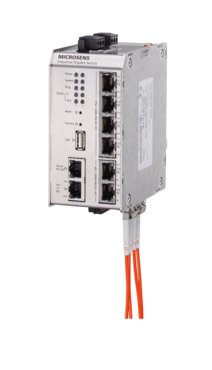

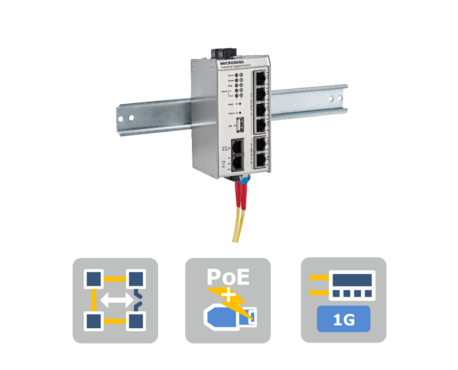

7-Port GbE Industrial Profi Line+ Switch PoE+
The Industrial Ethernet Switch Profi Line+ from MICROSENS delivers high performance in a compact design. Robust and reliable with quick recovery times, it is a top choice for Industrial Ethernet. Its hardware supports future functionalities via simple firmware upgrades, enabled by a powerful switching chipset and ARM processor. With Linux as its stable operating system, it provides a solid, intelligent, and long-term reliable platform.
  • Industrial design for maximum reliability in harsh environments
  • Highest Gigabit performance with smallest dimensions
  • PoE+ integrated
  • Redundant power inputs
Learn More
1
2
3

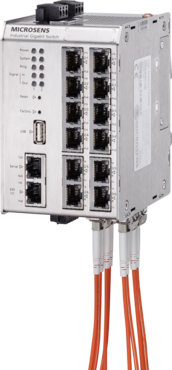

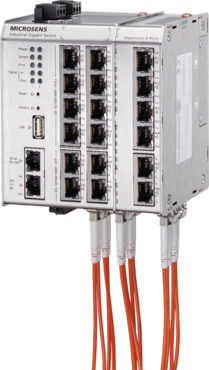

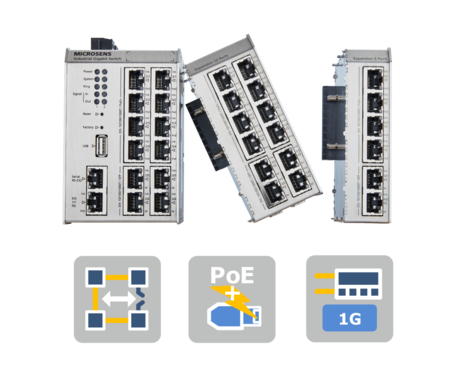

13-Port GbE Industrial Profi Line Modular Switch PoE+

Full Gigabit Performance with Energy-Efficient Ethernet, expandable to 25 GbE, including 16 PoE+ and 8 fiber optic combo ports

  • PoE (802.3at) on all 8 ports, 30 W per port, special version with a total of 16x PoE+ (480W) available
  • Compact fanless, operating temperature range from -40° to +75°C
  • High security through SSH, HTTPS, SNMPv3, Port Security 802.1x and full RADIUS NAC compatibility
  • Redundant in power and data, fail-safe due to MICROSENS ring function with shortest recovery time
Learn More
